Specialty Dock Parts

APS Resource SENTRY-RAIL Lift Out

APS Resource SENTRY-RAIL Lift Out

Regular price $218.00 USD
Regular price Sale price $218.00 USD
Sale Sold out

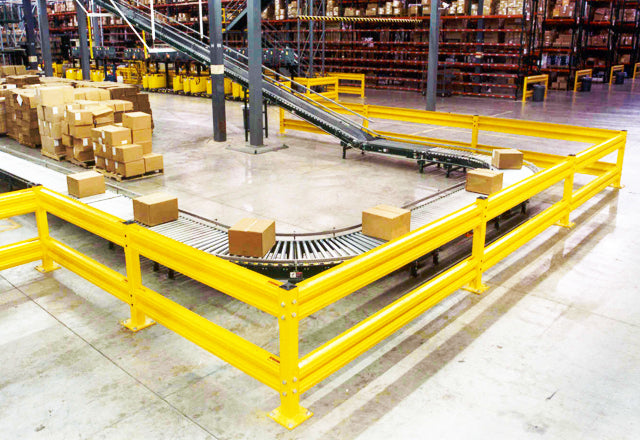

SENTRY RAIL™ Lift Out  helps provide high visibility and structural integrity needed to provide protection throughout your facility.

Features:

Powder-coated safety yellow for high visibility and lasting durability
Posts are 4” square high strength steel with 5/8” thick baseplate
Post caps and hole plugs included for aesthetics
Optional swing gate, lift-out rail and offset posts available
Installation instructions provided, use instruction AP7284
These products carry a (1) year limited warranty with APS Resource

NOTE: Complete mounting hardware, floor anchors, hole plugs and caps included.

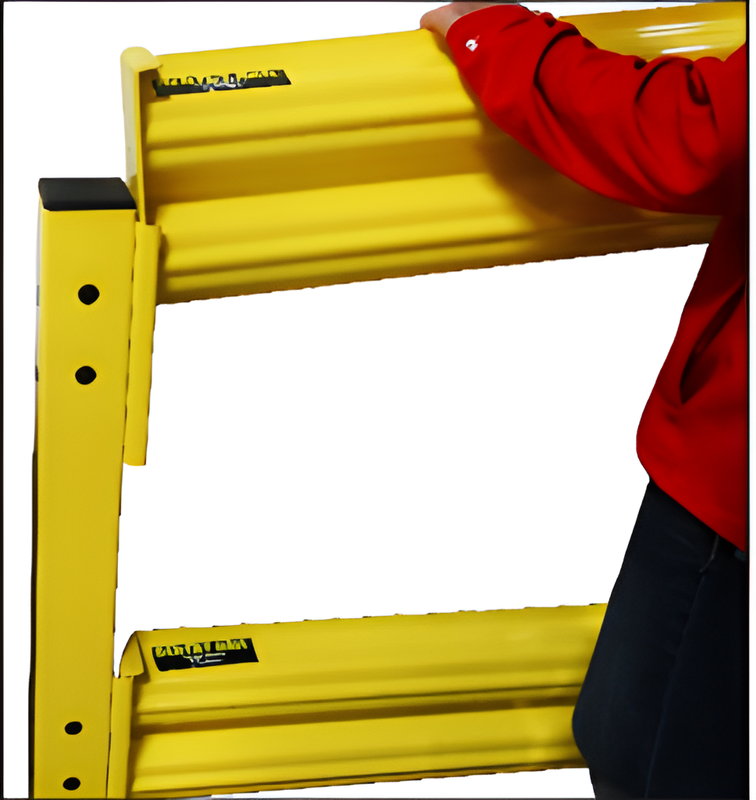

Lift Out style (removable) rail available, performance specification is reduced.

Technical Specifications:


Available Sizes

Single Rail: 18” high

Double Rail: 42” high

Baseplate: 8x8



Industry Standards

Withstands a 10,000 lb load at 4 mph*
Lift-out withstands 5,000 lb load at 4 mph

NOTE: loads are based on unit installed into 5”
concrete flooring

Construction
Material

Heavy-duty welded steel

Rails are 11 gauge steel



*Note: Rails sold individually. For 42" Columns you will need 2 rails per section.*
