Specialty Dock Parts
Curb Angle Kits for Kelley Models: HK, HP & aFX - Serco/APS Resource
Curb Angle Kits for Kelley Models: HK, HP & aFX - Serco/APS Resource
Couldn't load pickup availability

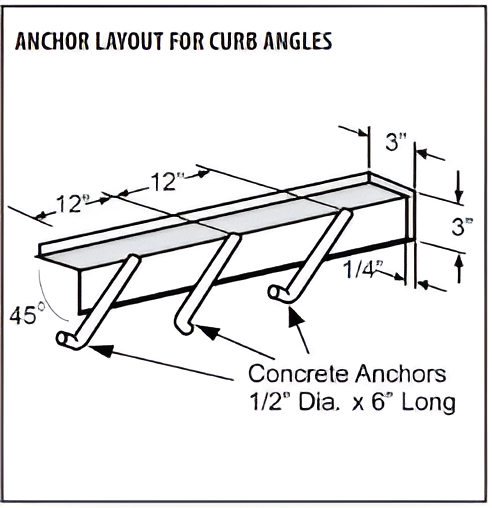

All curb angle is 3” x 3” x 1/4” with 1/2” diameter concrete studs on 12” centers, painted gray.
Galvanized option available upon request.
Custom sizes available
Always reference the pit detail for the specific model of leveler the curb steel will be used on.

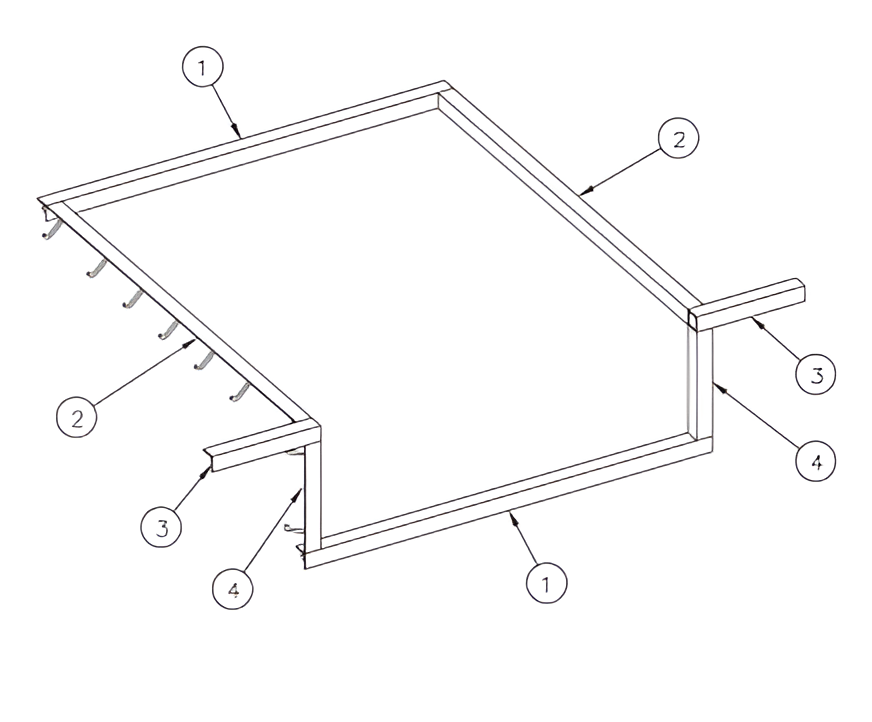

8 PIECE KITS
Leveler Size |
Pit Width |
Pit Length |
Item #1 |
Item #2 |
Items 3 & 4 |
Part #
|
6x6 |
74” |
63” |
80” |
60” |
17” or 21” |
AP0208 |
6x8 |
74” |
87” |
80” |
84” |
17” or 21” |
AP0209 |
6x10 |
74” |
111” |
80” |
108” |
17” or 21” |
AP0210 |
6.5x6 |
80” |
63’ |
86” |
60” |
17” or 21” |
AP0255 |
6.5x8 |
80” |
87” |
86” |
84” |
17” or 21” |
AP0211 |
6.5x10 |
80” |
111” |
86” |
108” |
17” or 21” |
AP0256 |
7x6 |
85” |
63” |
91” |
60” |
17” or 21” |
AP0212 |
7x8 |
85” |
87” |
91” |
84” |
17” or 21” |
AP0213 |
7x10 |
85” |
111” |
91” |
108” |
17” or 21” |
AP0214 |

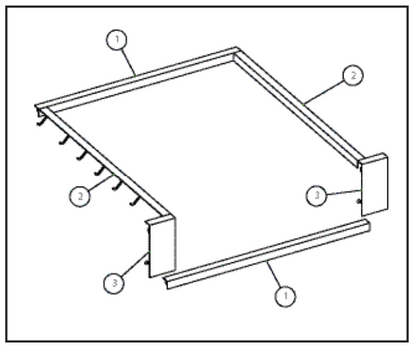

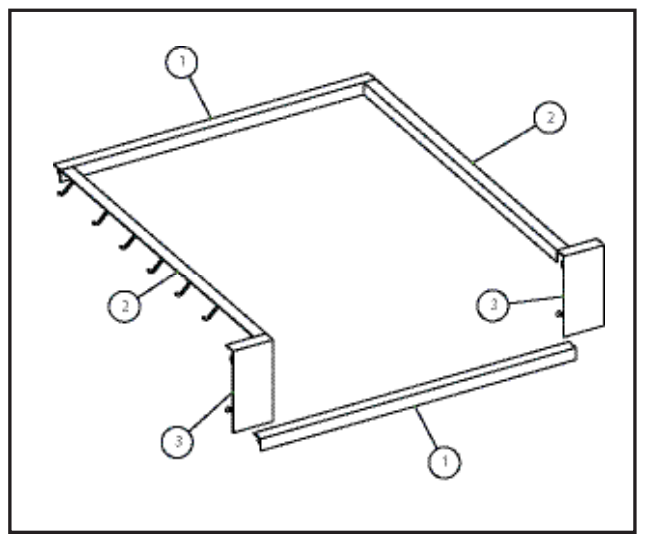

6 PIECE KITS
Leveler Size |
Pit Width |
Pit Length |
Item #1 |
Item #2 |
12”Hx16”W Plate |
20”Hx10”W Plate |
6x6 |
74” |
63” |
80” |
60” |
AP0471 |
AP3335 |
6x8 |
74” |
87” |
80” |
84” |
AP0474 |
AP3336 |
6x10 |
74” |
111” |
80” |
108” |
AP0477 |
AP3337 |
6.5x6 |
80” |
63’ |
86” |
60” |
AP0472 |
AP3338 |
6.5x8 |
80” |
87” |
86” |
84” |
AP0475 |
AP3339 |
6.5x10 |
80” |
111” |
86” |
108” |
AP0478 |
AP3340 |
7x6 |
85” |
63” |
91” |
60” |
AP0473 |
AP3332 |
7x8 |
85” |
87” |
91” |
84” |
AP0476 |
AP3333 |
7x10 |
85” |
111” |
91” |
108” |
AP0479 |
AP3334 |
